Description

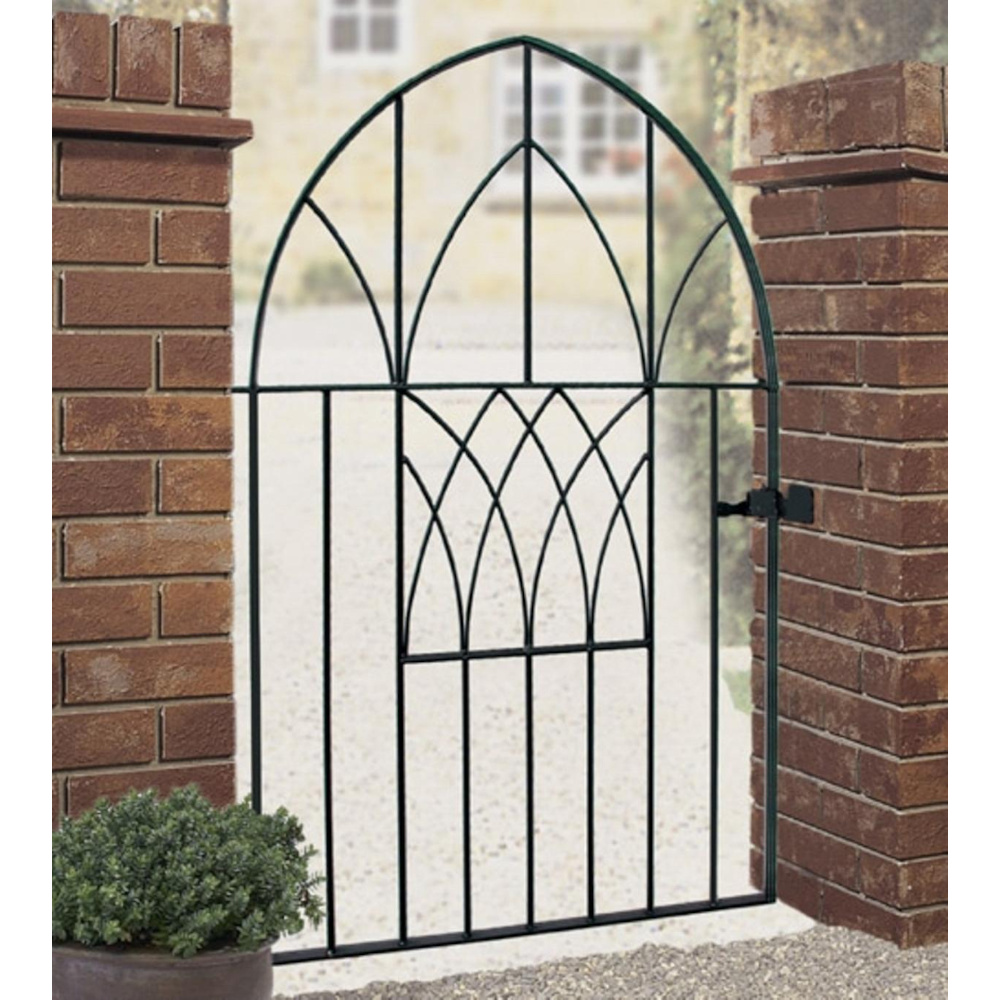

Abbey modern contemporary low bow top metal garden gate.
Frame Height is 812mm (32″)
• Solid steel construction.
• Frames 25mm x 6mm.
• Infill bars 10mm diameter.
• Pattern infill bars 6mm diameter.
• Finish: Electro-galvanised for added rust resistance and powder-coated black.
• Universal left hand or right hand opening.
• Limited Made-to-Measure is available on this range due to the fixed pattern size, call for a quote.
Fits a total post to post GAP as stated in the size selection. Gate frame height is 812mm before the bow starts, the overall height is as per the selection. We already account for the hinge and latch gaps within the width measurement listed. Finish is electro galvanised for added rust resistance and powder coated black, the finish must be inspected periodically and any chips touched up. Note; the galvanising is not a 100% rust proof guarantee. Like any outdoor metal product, it may need to be painted every couple of years to ensure long life. Moving parts will need to be paint touched up on a regular basis.
Fittings included; comes with hinge angle brackets, bolts, tip latch and catch. (No screws or wall plugs included) Easily fixes to brickwork, metal or timber posts. Nuts and bolts must be painted after fitting to prevent the onset of rust.
Optional 50mm square x 1400mm long concrete-in blank metal posts, select either BP50X1400ZP POST for flat top or BP50X1400BZP POST for ball top posts. On-site drilling will be required.
Note: The UP1 or UPZP1 CLEARANCE pre-drilled posts may not fit perfectly due to acceptable tolerances in the gate sizes. There may be small gaps between the hinges and brackets or you may need to re-drill some holes.
