Description

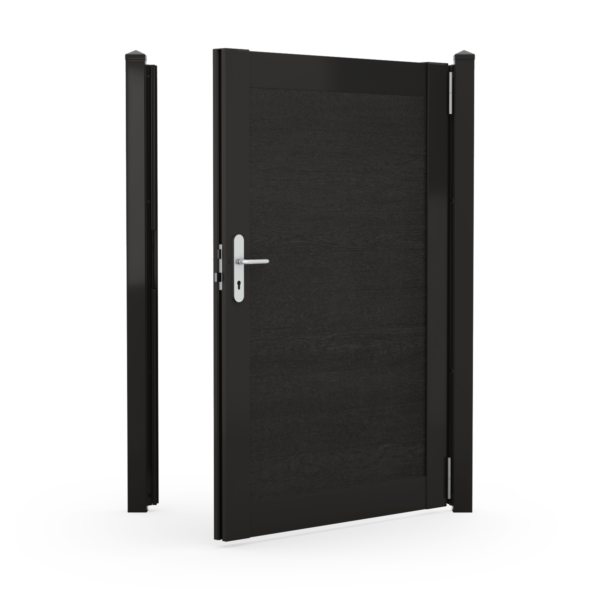

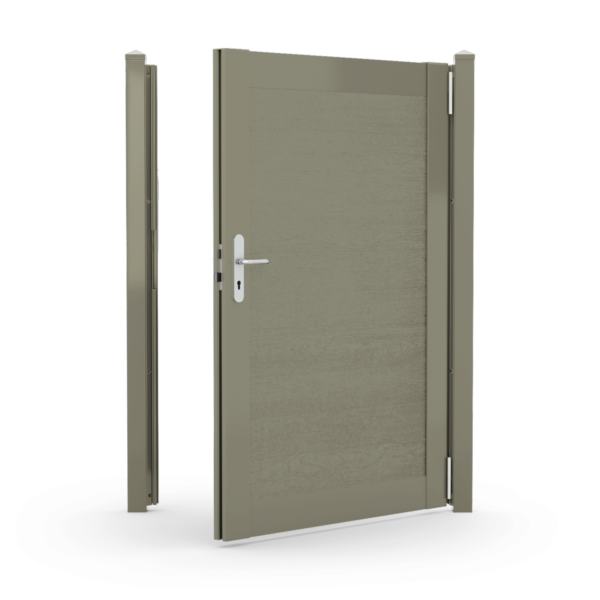

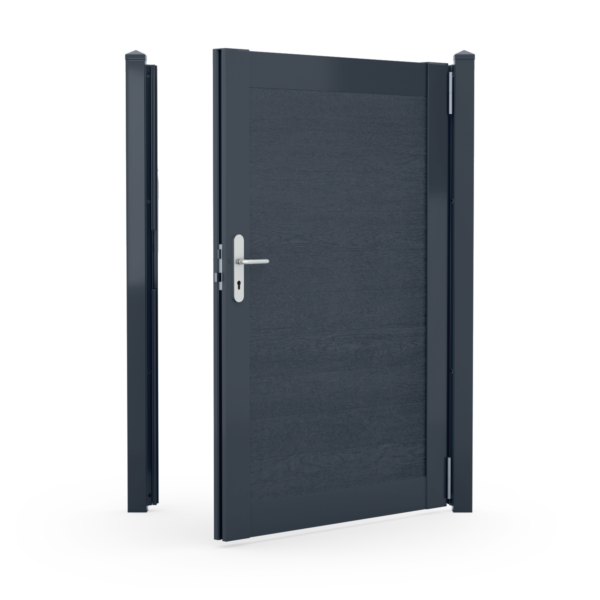

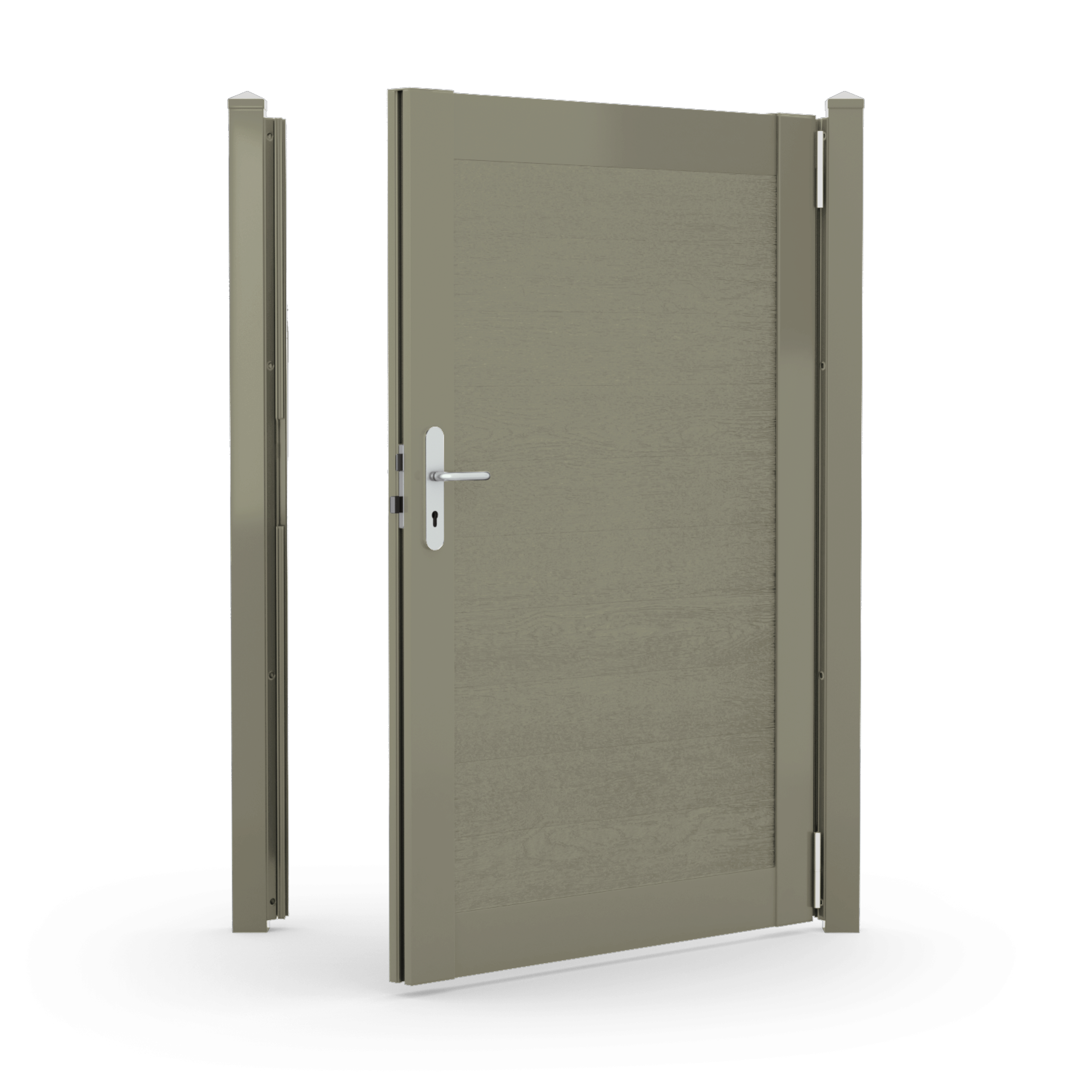

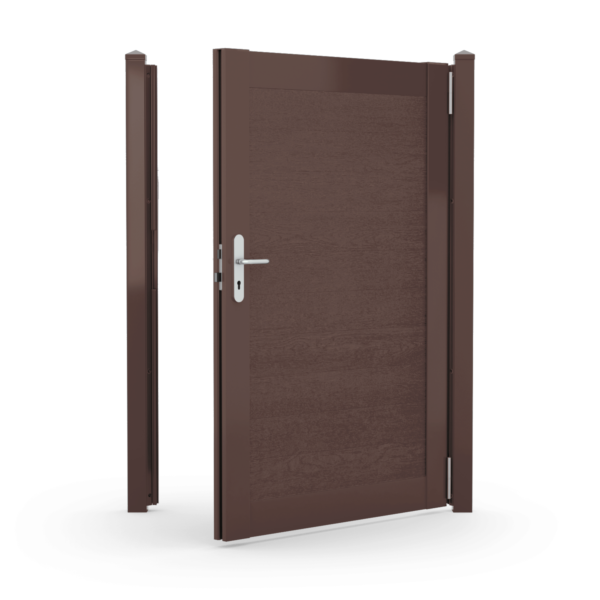

DuraPost® Aluminium Gate Frame
Make an entrance with our stylish DuraPost® Aluminium Adjustable Garden Gate Frame. We believe that a gate can do more than just provide access to and from your property. It can also enhance the look of your outdoors, complement your home and become a key feature of your garden.
Every project is different, which is why we’ve designed a gate to adjust to any outside space.
The DuraPost® Gate Frame gives you the flexibility to build a gate to your individual taste by following 3 easy steps:
Step One: Aluminium Gate Frame
Select your preferred colour of gate frame from Anthracite Grey, Olive Grey or Sepia Brown.
Step Two: Infill/Panel
Select your preferred material to infill the gate. We recommend using our DuraPost® composite infill panels in the same or contrasting colour for a full composite maintenance free look, or infilled with a custom timber match fence of your choice.
DuraPost® infill pack can be purchased alongside the gate frame.
Step Three: Adjust to Size
The maximum width is 1.188m, and can be reduced by cutting the top and bottom cross-rail down to the desired size with a chop-saw that has a new sharp metal-cutting blade.
The maximum height is 1.770m, and can be reduced in increments of 150mm down to a minimum of 1.32m.
Step Four: Select your Gate Hardware Kit
Our Kit comprises of:
Hinges: 2 x 165mm x 60mm made from Grade 304 3mm stainless steel lift off hinge. With no visible fixings when closed and anti-theft orientation, they are safe and secure.
Gate handle: 72mm narrow style back plate handle made from high-quality stainless steel. With a cylinder that can be keyed to your house key.
Lock: 72mm centre, 60mm back set lock.
Corner bracket: The corner brackets are an integral part of the DuraPost® Aluminium Gate, providing a rigid structure and a solid steel fixing point for the corners.
Steel Packer: Steel core ensures that corners remain square and provides a very strong point for hinges to be fixed/hang.
Plastic Packer: The steel packer and the plastic packer work together with the steel corner bracket to provide accurate fixing points.
Gate Hardware can be purchased alongside the gate frame.
Material: Made from powder-coated aluminium which means no rusting or painting required.
Constructed from EN/AW 600-grade aluminium, this gate is strong and secure.
Lock & hinge set are constructed from grade 304, 3mm thick stainless steel. The anti-theft design orients the hinges in such a way that the gate cannot be removed when closed.
Lock: DIN standard lock, to BS/EN 12209 with a 72mm centre, and 60mm back set. A cylinder is also supplied, made in the UK to BS/EN 1303:2005. The catch direction can be easily switched simply by pulling out the catch and twisting.
Designed to be made-to-measure on site.
Sustainability:
DuraPost® Gate Frame is 100% recyclable at the end of their long life.
Aluminium Gate Frame weighs only 26kg.
Lightweight and easy to transport, emissions and transport efforts are cut significantly.
Less concrete in your landscape. Made from recycled material and 100% recyclable at end of a long live.
Posts required for the gate sold separately
